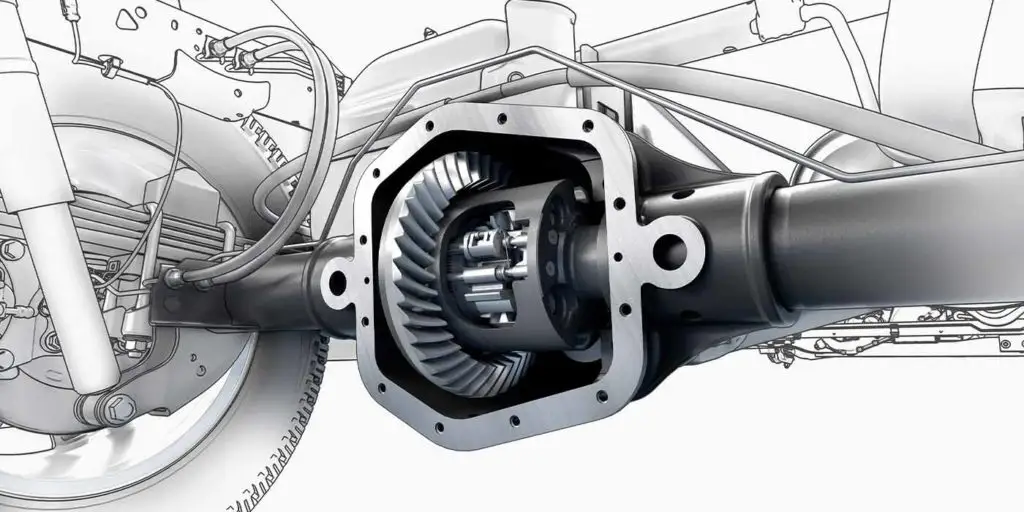

What Is a Limited Rear Slip Differential?
- Performance and sports cars
- Off-road and 4WD vehicles
- Commercial trucks and fleet vehicles
- Agricultural and industrial machinery
Why the Rear Axle Matters
- Rear torque distribution has a direct impact on vehicle handling and oversteer/understeer balance
- The rear differential is subject to high torque loads, especially under acceleration
- In performance applications, rear LSD tuning determines cornering behavior and exit speed
Main Types of Limited Rear Slip Differentials
1. Clutch-Pack (Friction-Based) LSD
How it works:
The clutch-pack LSD uses a set of friction plates (clutch discs) held together by preload springs. When torque differential between the two wheels exceeds a threshold, the friction plates engage and limit the slip between the two axle shafts.
- Smooth engagement, adjustable preload
- Torque-sensitive behavior
- Requires periodic maintenance (fluid changes, clutch replacement)
Street performance vehicles, sports cars, and light-duty trucks. The clutch-pack design is one of the most common types found in factory performance vehicles due to its predictable behavior and relatively low cost.
Clutch packs wear over time and require LSD-compatible gear oil. Custom preload settings allow tuning for specific performance requirements — ideal for OEM-level customization.
2. Torsen (Torque-Sensing) LSD
How it works:
The Torsen differential operates using a worm gear mechanism. It senses the difference in torque between the two output shafts and automatically apportions torque to the wheel with greater traction — without any clutch packs or electronics.
- Fully mechanical, no friction materials to wear out
- Torque-biasing ratio (TBR) typically ranges from 2.5:1 to 5:1
- Seamless, driver-transparent operation
High-performance road cars, sports sedans, and applications where consistent, maintenance-free operation is a priority. Popular in OEM fitments for luxury performance vehicles.
Torsen LSDs cannot transfer torque if one wheel loses complete traction (zero torque = no transfer). Not ideal for extreme off-road use. Higher manufacturing cost than clutch-pack designs.
3. Viscous Coupling LSD
How it works:
A viscous coupling LSD uses a sealed housing filled with silicone fluid and alternating perforated plates. When slip occurs between the two wheels, the relative motion causes the fluid to heat up and thicken, creating resistance and transferring torque to the slower wheel.
Key characteristics:
- Fully sealed — no maintenance required
- Gradual, progressive torque transfer
- Temperature-sensitive response
Passenger cars, light SUVs, and applications where simplicity and low maintenance are priorities. Also commonly used as a center differential in AWD systems.
Response time is slower compared to mechanical LSDs. Not suitable for high-performance or motorsport applications due to heat limitations. The sealed design means the unit must be replaced rather than rebuilt when it fails.
4. Electronic Limited Slip Differential (eLSD)
How it works:
An eLSD integrates an electronically controlled actuator (often hydraulic or electromagnetic) with a traditional clutch-pack differential. The vehicle’s ECU monitors wheel speed, throttle position, steering angle, and yaw rate — then modulates the clutch engagement in real time.
- Highly configurable via software
- Can operate in open-differential mode for comfort, switching to LSD mode on demand
- Integrates with stability control, traction control, and torque vectoring systems
Modern performance vehicles, luxury SUVs, electric vehicles, and any application where adaptive traction management is required.
Higher cost and complexity. Requires electronic control modules and sensors. Not suitable for applications without electronic management systems.
5. Locking Differential (Locker)
How it works:
While technically not a “slip limiting” device, a locking differential is often discussed alongside LSDs. A locker mechanically locks both axle shafts together so they rotate at exactly the same speed — delivering 100% torque split.
Key characteristics:
- Full locking capability
- Available in manual (driver-operated) or automatic (engagement triggered by wheel slip) variants
- Maximum traction in off-road conditions
Off-road vehicles, 4×4 trucks, rock crawlers, and agricultural equipment where maximum traction regardless of terrain is required.
Not suitable for on-road use at high speeds. Locking both wheels together creates handling issues during cornering on paved surfaces. Usually installed as a driver-selectable option.
6. Helical Gear LSD (Quaife-Type)
How it works:
The helical gear LSD uses a set of helical (angled) gears that mesh at an angle inside the differential casing. When torque differential occurs, the helical gears generate axial forces that push against the differential casing, creating friction that limits slip.
- No clutch packs — entirely gear-driven
- Self-adjusting with no preload degradation over time
- Very low maintenance
Front-wheel-drive applications, rally cars, and track-day vehicles. The Quaife-type helical LSD is popular in motorsport due to its durability and consistent behavior over long service intervals.
Behavior changes with driving style — throttle-on vs. throttle-off handling can feel different. Generally more expensive than clutch-pack designs.
Comparison Table: Limited Rear Slip Differential Types
| Type | Mechanism | Maintenance | Best For | Torque Transfer |
|---|---|---|---|---|
|
Clutch-Pack |
Friction plates |
Periodic |
Street/performance |
Moderate–High |
|
Torsen |
Worm gears |
Minimal |
Road performance |
Moderate |
|
Viscous Coupling |
Silicone fluid |
None (sealed) |
Passenger cars |
Low–Moderate |
|
eLSD |
Clutch + ECU |
Low |
Modern performance/EV |
Variable |
|
eLSD |
Clutch + ECU |
Low |
Modern performance/EV |
Variable |
|
Locking Differential |
Mechanical lock |
Low |
Off-road/4×4 |
100% |
|
Helical Gear (Quaife) |
Gear-driven |
Minimal |
Motorsport/FWD |
Moderate |
How to Choose the Right Limited Rear Slip Differential
1. Application Type
Street performance, motorsport, off-road, commercial, or OEM fitment — each has different requirements for engagement speed, durability, and maintenance intervals.
2. Torque Requirements
Higher-torque applications (diesel trucks, performance engines) require more robust LSD designs — typically clutch-pack or helical gear units with higher torque ratings.
3. Vehicle Electronics Integration
If your vehicle uses modern stability and traction control systems, an eLSD may be necessary to avoid conflicts with ABS and ESC systems.
4. Customization Needs
For fleet buyers or OEM customers requiring specific bias ratios, preload settings, or gear ratios, a manufacturer offering custom limited rear slip differentials provides significant advantages.
5. Budget and Lifecycle Cost
Consider not just purchase price but also replacement intervals, fluid requirements, and potential rebuild costs over the vehicle’s service life.
Frequently Asked Questions
Q: What is the difference between a limited slip differential and a locking differential?
A limited slip differential limits the amount of slip between the two wheels — it still allows some speed difference during cornering. A locking differential completely locks both wheels together with no speed differential allowed.
Q: Can I upgrade my open differential to a limited rear slip differential?
In most cases, yes. Many aftermarket and OEM suppliers offer LSD units designed as drop-in replacements for open differentials within the same axle housing.
Q: What type of gear oil does a limited rear slip differential require?
Clutch-pack and helical gear LSDs typically require gear oil with a friction modifier additive (GL-5 rated with LSD additive). Viscous units are sealed and do not require oil changes. Always consult the manufacturer’s specifications.
Q: Are limited rear slip differentials available for custom gear ratios?
Yes. Manufacturers that specialize in ring and pinion gears and differential assemblies — particularly factory suppliers — can often match LSD units to specific gear ratio requirements for custom applications.
Conclusion
For manufacturers, fleet operators, or performance builders sourcing rear axle components in volume, working directly with a factory supplier that can provide custom limited rear slip differentials — including tailored gear ratios and torque specifications — ensures the best long-term performance and cost efficiency.
