Explain the Locking Differential

When it comes to locking differentials, you must first understand how differentials work. A typical differential consists of the following key parts:

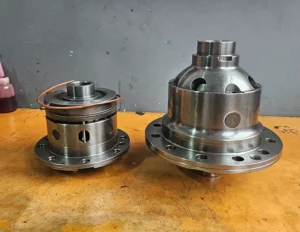

locking differential
  • Pinion gear: This component receives power from the drive shaft and transmits it to the ring gear.
  • Ring gear: The ring gear, along with the input pinion gear, transmits power to the cross gear of the differential.
  • Spider gear (also called differential gear): The spider gear allows the side gears to rotate at different speeds.
  • Side gear (also called axle gear): The side gears are ultimately connected to the vehicle’s axles. These gears drive the wheels.

Common Differential Types

Open Differential

This is the most common type of differential. An open differential works by distributing power evenly to both wheels on an axle. It is simple and cost-effective, but has limitations in low-traction conditions where one wheel can spin freely, reducing overall traction.
Advantages Disadvantages
1. Regular open differentials are very low cost to the manufacturer.
2. Open differentials are simple in design and easy to maintain.
1. Open differentials are not ideal in low-traction situations.

Limited Slip Differential

Limited Slip Differential (LSD) systems limit the speed difference between the wheels. There are several LSD systems to choose from, including clutch-type, viscous, and Torsen. Overall, LSD systems provide higher levels of traction.
Clutch-type LSDs Torsen LSD Viscous LSDs
use a clutch to engage the differential.
use gears to automatically distribute torque.
use a viscous fluid to transfer torque.

Locking Differential

A locking differential system is ideal for extreme off-road conditions. This is because the system can lock the wheels together, forcing them to rotate at the same speed. You’ll find many locking differential systems in pickup trucks and more rugged SUV models.
Advantages Disadvantages
Enhanced traction in difficult conditions.
Impaired handling on regular roads.

How to Choose a Differential for Different Conditions?

Differentials offer unique advantages in both normal and off-road driving conditions. Let’s look at the advantages of differentials in both on- and off-road driving conditions.
When you’re driving in normal conditions, your vehicle’s differential system provides smooth, efficient power and control.
When you’re driving off-road, your vehicle’s differential system plays an even more important role. For example, limited-slip differentials and locking differentials provide higher levels of traction and handling.

Conclusion

Whether on-road or off-road, your vehicle’s differential system is essential for smooth and safe handling. Certain differential systems are better suited to specific driving conditions. Be sure to maintain your vehicle’s differential system annually for optimal performance. By maintaining an ideal differential system, you can enjoy an ideal driving experience.
