Structural and Operational Analysis of Clutch-Type Limited Slip Differentials

Traditional open differentials, while effective in allowing the left and right wheels to rotate at different speeds during cornering, suffer significant limitations under conditions of low traction or single-wheel slippage. In such scenarios, torque is disproportionately distributed to the wheel with the least resistance, leading to a loss of effective driving force. To overcome this limitation, the Limited Slip Differential (LSD) was developed. Among various LSD types, the clutch-type mechanical LSD stands out due to its rapid response, mechanical simplicity, and independence from electronic controls. It is widely applied in motorsports, performance vehicles, and off-road platforms. This article presents a systematic analysis of its structural components, operating principles, and torque transfer mechanisms under dynamic conditions.

Structural Composition

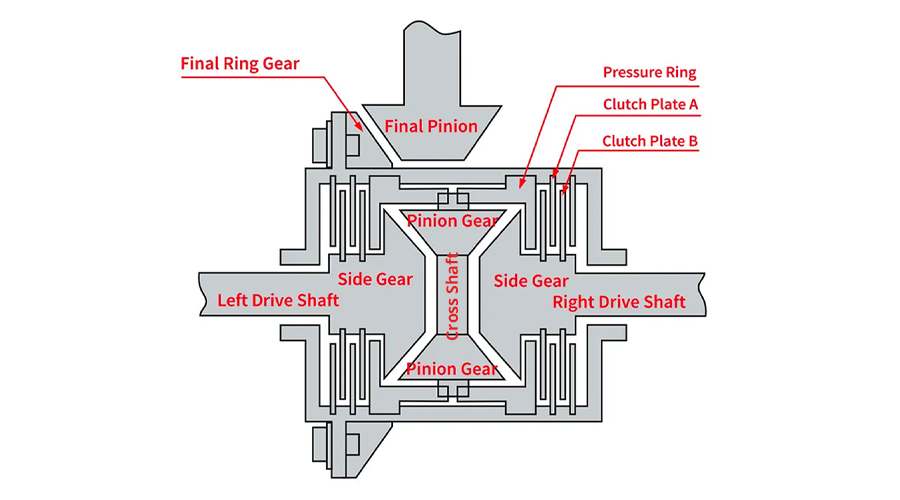

Clatch LSD
The clutch-type LSD primarily relies on the friction generated between pressure plates and clutch discs to limit the speed difference between the drive wheels. Its key components include the differential case, pressure plates, clutch pack, side gears, and the cross shaft (also known as the spider shaft).

The differential case serves as the external housing, rigidly connected to the drivetrain (e.g., driveshaft or transmission output shaft), and transmits torque to the internal components. It features internal grooves and stop surfaces for the installation and axial guidance of the pressure plates and clutch pack.

The pressure plate is a metallic disc with specially machined grooves or ramps at its center, designed to interact with matching protrusions on the cross shaft. During operation, the relative rotation between the cross shaft and the pressure plate ramps converts rotational motion into axial displacement, enabling the pressure plate to compress the clutch pack.

The clutch pack consists of alternating outer clutch discs (connected to the differential case via external splines) and inner clutch discs (connected to the side gears, which in turn mesh with the vehicle’s axle shafts). This stack of friction elements serves as the medium for torque modulation between the differential case and the axle shafts.
The cross shaft passes through the center of the pressure plate and is equipped with small pinion gears that mesh with the side gears, forming a planetary gear system. It is the key element that senses torque differentials and drives the pressure plate’s axial motion based on the torque load.

Operating Principle and Dynamic Behavior

During straight-line driving or situations where both wheels have equal traction, the differential operates in a passive, open-differential mode. The cross shaft and differential case rotate in unison; no relative motion occurs along the pressure plate ramps, resulting in no axial displacement. The clutch pack remains uncompressed, and the wheels are free to rotate at different speeds as needed.
When torque increases—such as during acceleration or when one wheel begins to slip—the cross shaft experiences torque-induced rotation. Its protrusions move along the inclined ramps of the pressure plate, generating axial thrust. This motion pushes the pressure plate outward, thereby compressing the clutch pack. As the friction elements are squeezed together, a resistive frictional torque is generated between the differential case and the side gears. This friction resists the speed differential between the two wheels and actively redirects torque from the slipping wheel to the wheel with greater traction.
The extent of this locking effect is governed by factors such as ramp angles, clutch material properties, preload force, and dynamic loading. The ramp geometry on the pressure plate also determines how the LSD behaves during deceleration and braking.

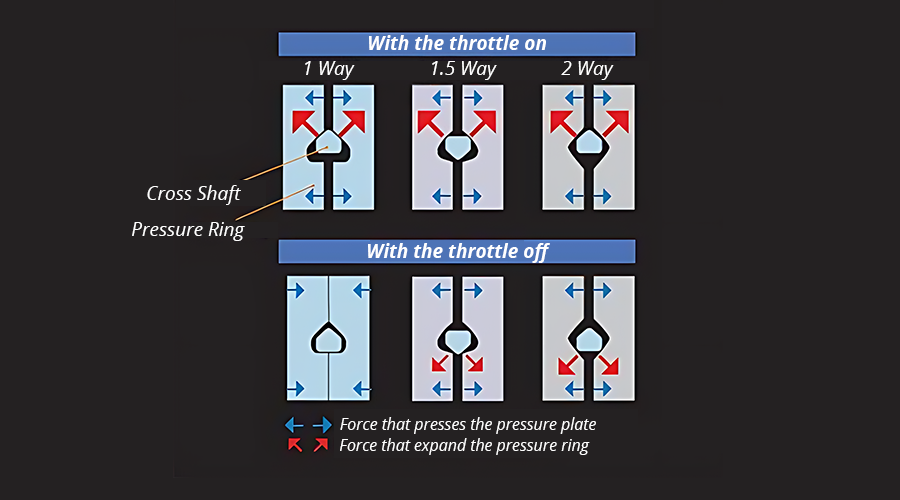

In one-way LSDs, the ramp surfaces are angled only on the acceleration side. During deceleration, the ramp surfaces are flat or disengaged, meaning the pressure plate does not move, and no locking effect is present. In contrast, two-way LSDs have symmetrical ramp angles on both acceleration and deceleration sides, allowing the pressure plate to engage the clutch pack under both driving and braking conditions. A 1.5-way LSD features asymmetrical ramp angles—steeper on the acceleration side and shallower on the deceleration side—providing full locking during acceleration and partial locking during braking. This design balances traction control and handling comfort.

Performance Characteristics and Applications

Clutch-type LSDs are prized for their quick response, customizable torque transfer characteristics, and purely mechanical design. Their reliability and effectiveness under extreme environmental conditions—high temperature, high humidity, or electronic system failure—make them ideal for performance and off-road applications. By adjusting ramp angles, clutch stack composition, and spring preload, engineers can precisely tune the LSD’s engagement behavior to meet specific vehicle requirements.

In motorsports, two-way LSDs provide consistent lock-up during both acceleration and deceleration, enhancing cornering stability and rear-end control. In road and mountain driving scenarios, 1.5-way LSDs offer a balance of stability and drivability by reducing locking strength during braking. While Torsen (torque-sensing) differentials are often favored in all-wheel drive and variable road conditions due to their self-adaptive characteristics, clutch-type LSDs remain valuable where deterministic and tunable locking behavior is required, particularly in racing or off-road competition.

Conclusion

As a core variant of mechanical limited slip differentials, the clutch-type LSD utilizes pressure plate actuation and friction disc compression to actively regulate torque distribution between drive wheels. With its robust construction, tunable engagement profile, and independence from electronics, it continues to play a vital role in modern high-performance drivetrains. As materials science and manufacturing techniques evolve, further improvements in durability and responsiveness are anticipated, ensuring its continued relevance in high-demand automotive applications.
